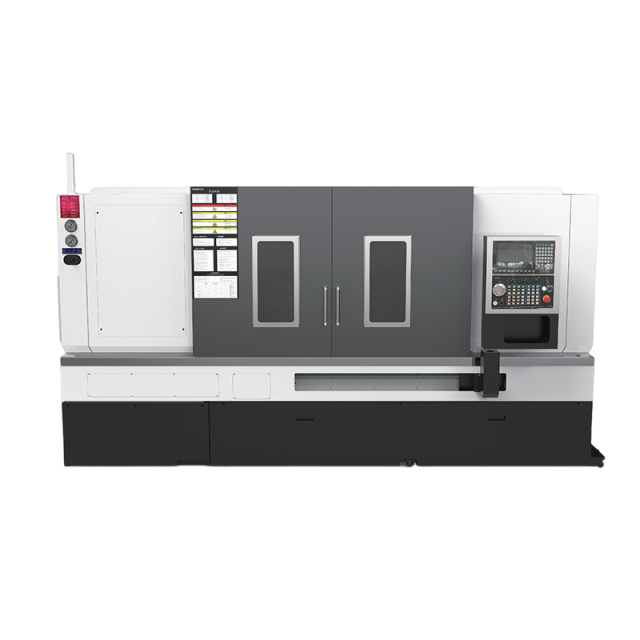

①High-rigidity A2-8/A2-11spindle
②Integrated servo hydraulic tool rest,with more compact structure,and more stableand reliable mechanical precision
③The guide rail of the machine tool body is designed with high and low rails,the machine tool body is cast as a whole,and the internal stress is eliminated through multi-channel aging and heat treatment process,so that the machine tool can maintain the optimum precision and rigidity for along time.
④For the hydraulic test and adjustment,the panel is installed in front,with mechanical rotation operation ,and it is easy to monitor andadjust the hydraulic system pressure from the front of the machine.
⑤The X axis of the machine tool adopts the inclined design of 30°,RG45 roller linear guide rail and RG40 roller screw,with the advantages of strong ability to offset heavy cutting vibration and high precision.
| Item | Specification | LA600C-1600 | LA600D-1600 | |
| Machining capacity | Tool rest specification | 125-12-32 | 125-12-32 | |
| Maximum rotating diameter | mm | 700 | 700 | |
| Standard machining diameter | mm | 280 | 280 | |
| Maximum machining diameter | mm | 600 | 600 | |
| Maximum machining length | mm | 1600 | 1600 | |
| Machining diameter of bar | mm | 74 | 94 | |
| Movement | X-axis movement | mm | 320 | 320 |
| Z-axis movement | mm | 1650 | 1650 | |
| Spindle | Rotating speed | r/min | 2200 | 1200 |
| Minimum indexing angle (CS axiS control) | deg | - | - | |
| Spindle end (nominal No.) | A2-8 | A2-11 | ||
| Through-hole diameter | mm | 86 | 105 | |
| nner diameter of bearing | mm | 130 | 160 | |
| Tool rest | Tool rest form | Tool rest form | Direct-mounted | Direct-mounted |
| Tool clamping quantity | Pcs. | 12 | 12 | |
| Height of rectangular cutter handle | mm | 32 | 32 | |
| Diameter of boring bar handle | mm | 50 | 50 | |
| Power head (optional) | BMT65 | BMT65 | ||
| Servo tailstock | Movement of tailstock | mm | 1400 | 1400 |
| Diameter of tailstock sleeve | mm | 75 | 75 | |
| Taper of taper hole of tailstock sleeve | MT.5 | MT.5 | ||
| Tailstocklinear guide rail | RG45 roller | RG45 roller | ||
| Tailstock screw | 4008 | 4008 | ||
| Feed speed | Fast feed speed | m/min | X:24/Z:30/M:24 | X:24/Z:30/M:24 |
| Motor | Spindle motor (60%for30min/continuous) | kW | 15 | 15 |
| Rotating tool motor (15min/continuous) | kW | - | - | |
| Feed shaft motor | NM | X:15/Z:15/M:15 | X:15/Z:15/M:15 | |
| Hydraulic pumpmotor | kW | 2.2 | 2.2 | |
| Motor for cutting fluid pump | kW | 0.75 | 0.75 | |
| Required power supply | Power supply (three-phase | V | 380±10% | 380±10% |
| Fuel tank capacity | Used for the hydraulic device | L | 45 | 45 |
| Used for the lubricating oil | L | 3 | 3 | |
| Used for the cutting fluid | L | 200 | 200 | |
| Machine tool volume | Height of machine tool | mm | 2000 | 2000 |
| Height from ground to the spindle center line | mm | 1100 | 1100 | |
| Floor area(standard specification) | mm x mm | 3800×200 | 3800×200 | |
| Weight of Machine Tool | kg | 6500 | 6500 | |
