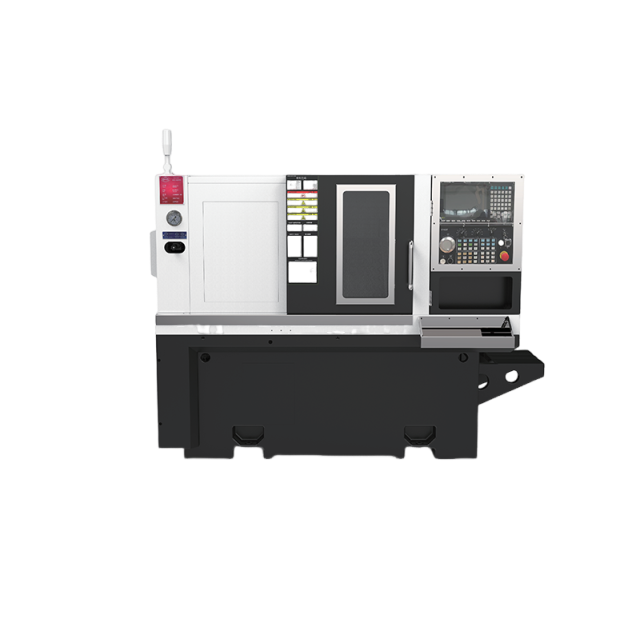

①The spindle motor is driven by the elecric spindle with superior output torque,and the integrated cooling fan is adopted,so as to ensure the operating temperature of the motor and guarantee the service life and machining predision of the motor.
②Row tool,with fast moving speedmore compact structure,and morestable and reliable mechanical precision
③The guide rail of the machine tool body is designed with high and lowr ails,the machine tool body is cast as a whole,and the internal stress is eliminated through multi-channel aging and heat treatment process,so that the machine tool can maintain the optimum predsion and rigidity for a longtime.
④For the hydraulic test and adjustment,the panel is installed in front,with mechanical rotation operation,and it is easy to monitor and adjust the hydraulic system pressure from the front of the machine.
⑤The X axis of the machine tool adopts the inclined design of 30°,RG35 roller linear guide rail and RG32 roller screw,with the advantages of strong ability to offset heavy cutting vibration and high precision.
| Item | Specification | LA400A-450P | LA400B-450P | |
| Machining capacity | Tool rest specification | Row tool | Row tool | |
| Maximum turning diameter of bed | mm | 400 | 400 | |
| Standard machining diameter | mm | 160 | 160 | |
| Maximum turming diameter on the trailer | mm | 140 | 140 | |
| Maximum machining length | mm | 300 | 300 | |
| Machining diameter of through-hole bar | mm | 35 | 45 | |
| Movement | X-axis movement | mm | 380 | 380 |
| Z-axis movement | mm | 450 | 450 | |
| Spindle | Rotating speed | r/min | 5000 | 4000 |
| Minimum indexingangle(CSaxis control) | deg | - | - | |
| Spindle end (nominal No.) | A2-5 | A2-6 | ||
| Through-hole diameter | mm | 48 | 56 | |
| Inner diameter of bearing | mm | 85 | 90 | |
| Tool rest | Tool rest form | Row tool | Row tool | |
| Tool clamping quantity | Pcs. | 4 | 4 | |
| Height of rectangular cutter handle | mm | 25 | 25 | |
| Inner hole of turning tool base | mm | 20 | 20 | |
| Feed speed | Fast feed speed | m/min | X:30/Z:30 | X:30/Z:30 |
| Motor | Spindle motor | kW | 7.5 | 11 |
| Rotating tool motor(15min/continuous) | kW | - | - | |
| Feed shaft motor | kW | X:1.1/Z:1.1 | X:1.1/Z:1.1 | |
| Hydraulic pump motor | kW | 1.5 | 1.5 | |
| Motor for cutting fluid pump | kW | 0.4 | 0.4 | |
| Required power supply | Power supply | V | 380±10% | 380±10% |
| Fuel tank capacity | Used for the hydraulic device | L | 45 | 45 |
| Used for the lubricating oil | L | 3 | 3 | |
| Used for the cutting fluid | L | 50 | 50 | |
| Machine tool volume | Height of machine tool | mm | 1650 | 1650 |
| Height from ground to the spindle center line | mm | 980 | 980 | |
| Floor area (standard specification) | mm x mm | 2000x1400 | 2000x1400 | |
| Weight of Machine Tool | kg | 2100 | 2100 | |
