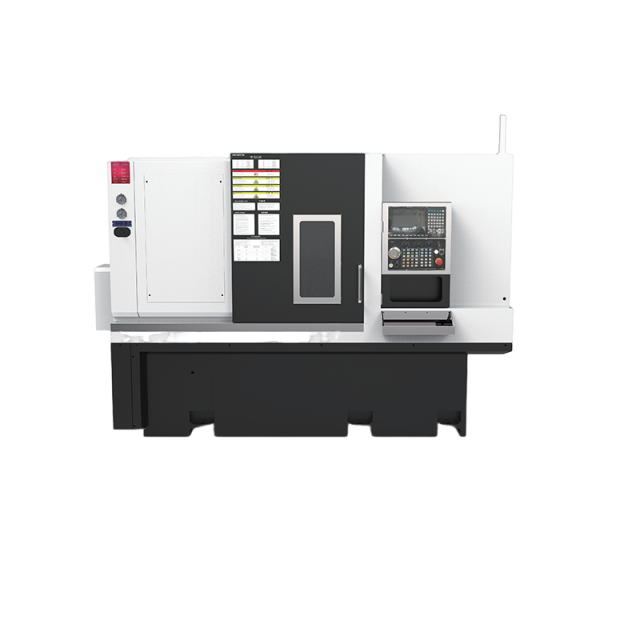

①The spindle motor is driven by the electric spindle with superior output torque,symmetric with the submerged spindle box for water cooling and heat dissipaton to ensure the operating temperature of the motor and guarantee the service life and machining precision of the motor.
②Y-axis dynamic miling cutter turret:by improving the machining capacity (optional interpolation Y,high rigidity),drilling,milling.tapping and other composite machining can be performed for the Yaxis on the end face or the side surface,which can realize the machining concept of one-time clamping and all completions.
③The guide rail of the machine tool body is designed with high and low rails,the machine tool body is cast as a whole,and the internal stress is eliminated through multi-channel aging and heat treatment process,so that the machine tool can maintain the optimum precision and rigidity for a long time.
④For the hyd aulic test and adjustment,the panel is installed in front,with mechanical rotation operation,and it is easy tomonitor and adjust the hydraulic system pressure from the front of the machine.
⑤The X axis of the machine tool adopts the inclined design of 30°,RG45 roller linear guide rail and RG40 roller screw,with the advantages of strong ability to offset heavy cutting vibration and high precision.
⑥Sub-spindle:the spindle adopts the built-in synchronous electric spindle structure with high power,torque,speed and precision,suitable for machining various parts,with low speed characteristics,suitable for C-axis cutting.The sub-spindle can be moved at high speed and butt with the main spindle to realize the machining of the positive and negative sides of the partsunder one-time clamping.
| Item | Specification | LA500BXY-700 | LA500CXY-700 | |
| Machining capacity | Tool rest specification | LQD80Y | LQD80Y | |
| Maximum rotating diameter | mm | 500 | 500 | |
| Standard machining diameter | mm | 280 | 280 | |
| Maximum machining diameter | mm | 350 | 350 | |
| Maximum machining length | mm | 700 | 700 | |
| Minimum machining length tailstock center) | mm | 120 | 120 | |
| Machining diameter of bar | mm | 51 | 74 | |
| Movement | X-axis movement | mm | 210 | 210 |
| Z-axis movement | mm | 700 | 700 | |
| Y-axis movement | mm | ±45 | ±45 | |
| Spindle | Rotating speed | r/min | 3000 | 2200 |
| Minimum indexing angle (CS axis control) | deg | 60" | 60" | |
| Spindle end (nominal No.) | A2-6 | A2-8 | ||
| Through-hole diameter | mm | 62 | 86 | |
| Inner diameter of bearing | mm | 110 | 130 | |
| Tool rest | Tool rest form | Direct-mounted | Direct-mounted | |
| Tool clamping quantity | Pcs. | 12 | 12 | |
| Height of rectangular cutter handle | mm | 25 | 25 | |
| Power head | BMT55 | BMT55 | ||
| Diameter of boring bar handle | mm | 32 | 32 | |
| Tailstock | Movement of tailstock | mm | 720 | 720 |
| Diameter of tailstock sleeve | mm | 72 | 72 | |
| Taper of taper hole of tailstock sleeve | MT.5 | MT.5 | ||
| Movement of tailstock sleeve | mm | 140 | 140 | |
| Tailstock screw(optional) | 4008 | 4008 | ||
| Feed speed | Fast feed speed | m/min | X:24/Z:30 | X:24/Z:30 |
| Motor | Spindle motor (60%for 30min/continuous) | kW | 18.5 | 11/15 |
| Rotating tool motor (15min/continuous) | kW | 2.3 | 2.3 | |
| Feed shaft motor | kW | X:2.4/Z:2.4/Y:1.7 | X:2.4/Z:2.4/Y:1.7 | |
| Hydraulic pump motor | kW | 2.2 | 2.2 | |
| Motor for cutting fluid pump | kW | 0.55 | 0.55 | |
| Required power supply | Power supply (three-phase) | V | 380±10% | 380±10% |
| Fuel tank capacity | Used for the hydraulic device | L | 45 | 45 |
| Used for the lubricating oil | L | 3 | 3 | |
| Used for the cutting fluid | L | 120 | 120 | |
| Machine tool volume | Height of machine tool | mm | 2062 | 2026 |
| Height from ground to the spindle center line | mm | 1020 | 1020 | |
| Floor area(standard specification) | mmx mm | 3000×1700 | 3000×1700 | |
| Weight of Machine Tool | kg | 4500 | 4500 | |
| Sub-spindle | Movement | mm | 600 | 600 |
| Spindle end (nominal No.) | A2-5 | A2-5 | ||
| Linear rail | RG35 roller | RG35 roller | ||
| Screw rod | 4008 | 4008 | ||
| Power | KW | 5.5 | 5.5 24 | |
