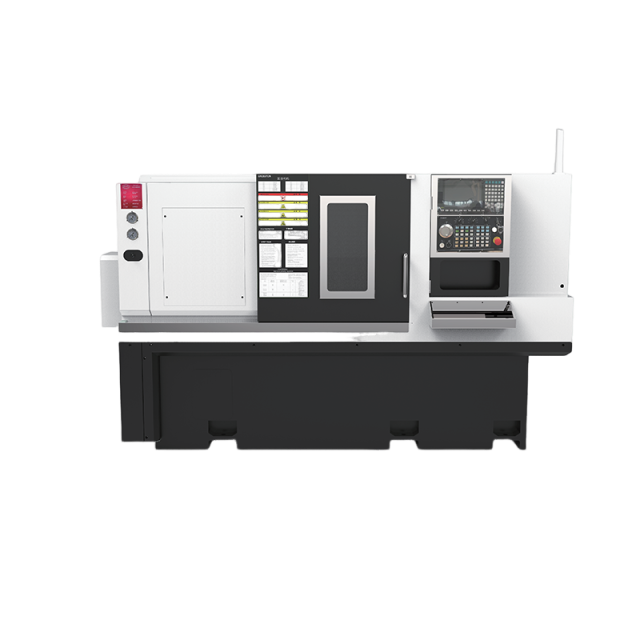

①The spindle motor is driven by the electric spindle with superior output torque,symmetric wth the submerged spindle box for water cooling and heat dissipation to ensure the operating temperature ofthe motor and guarantee the service life and machining precision of the motor.
②Integrated servo hydraulic too rest,with more compact structure,and more stabe and reiable mechanical precision
③The guide rail ofthe machine tool body isdesigned with high and low rails,the machine tool body iscast as a whole,and theinternal stresss eliminated through muti-channel aging and heat treatment process,so that the machine tool can maintain the optimum precision and rigidity for a long time.
④For the hydraulic test and adjustment,the panelis installed in front,with mechanical rotation operation,and it is easy to monitor and adjust the hydraulic system pressure from the front of the machine.
⑤The X axis of the machine tool adopts the inclined design of 30°,RG45 roller linear guide rail and RG40 roller screw,with the advantages of strong ability to offset heavy cutting vibration and high precision.
⑥Sub-spindle:the spindle adopts the built-in synchronous electric spindle structure with high power torque,speed and precision,suitable for machining various parts,with low speed characteristics,sutable for C-axis cutting.The sub-spindle can be moved at high speed and butt with the main spindle to realize the macining of the positive and negative sides of the parts under one-time clamping.
| Item | Specification | LA500B-850 | LA500C-850 | |
| Machining capacity | Tool rest specification | 1001225 | 1001225 | |
| Maximum rotating diameter | mm | 500 | 500 | |
| Standard machining diameter | mm | 280 | 280 | |
| Maximum machining diameter | mm | 420 | 420 | |
| Maximum machining length | mm | 800 | 800 | |
| Machining diameter of bar | mm | 51 | 74 | |
| Movement | X-axis movement | mm | 210 | 210 |
| Z-axis movement | mm | 850 | 850 | |
| Spindle | Rotating speed | r/min | 3000 | 2200 |
| Minimum indexing angle CS axiS control) | deg | - | - | |
| Spindle end (nominal No.) | A2-6 | A2-8 | ||
| Through-hole diameter | mm | 62 | 86 | |
| Inner diameter of bearing | mm | 110 | 130 | |
| Tool rest | Tool rest form | Direct-mounted | Direct-mounted | |
| Tool clamping quantity | Pcs | 12 | 12 | |
| Height of rectangular cutter handle | mm | 25 | 25 | |
| Diameter of boring bar handle | mm | 40 | 40 | |
| Power head (optional) | BMT55 | BMT55 | ||
| Tailstock | Movement of tailstock | mm | 720 | 720 |
| Diameter of tailstock sleeve | mm | 72 | 72 | |
| Taper of taper hole of tailstock sleeve | MT.5 | MT.5 | ||
| Movement of tailstock sleeve | mm | 140 | 140 | |
| Tailstock screw (optional) | 4008 | 4008 | ||
| Feed speed | Fast feed speed | m/min | X:24/Z:30 | X:24/Z:30 |
| Motor | Spindle motor | kW | 18.5 | 15 |
| Rotating tool motor (15min/continuous) | kW | - | ||
| Feed shaft motor | kW | X:1.7/Z:1.7 | X:1.7/Z:1.7 | |
| Hydraulic pump motor | kW | 2.2 | 2.2 | |
| Motor for cutting fluid pump | kW | 0.55 | 0.55 | |
| Required power supply | Power supply (three-phase | V | 380±10% | 380±10% |
| Fuel tank capacity | Used for the hydraulic device | L | 45 | 45 |
| Used for the lubricating oil | L | 3 | 3 | |
| Used for the cutting fluid | L | 200 | 200 | |
| Machine tool volume | Height of machine tool | mm | 1700 | 1700 |
| Height from ground to the spindle center line | mm | 1020 | 1020 | |
| Floor area(standard specification) | mm x mm | 2800×1650 | 2800×1650 | |
| Weight of Machine Tool | kg | 4500 | 4500 | |
| Sub-spindle (optional) | Movement | mm | 550 | 550 |
| Spindle end (nominal No.) | A2-5 | A2-5 | ||
| Linear rail | RG35 roller | RG35 roller | ||
| Screw rod | 4008 | 4008 | ||
| Power | KW | 5.5 | 5.5 | |
